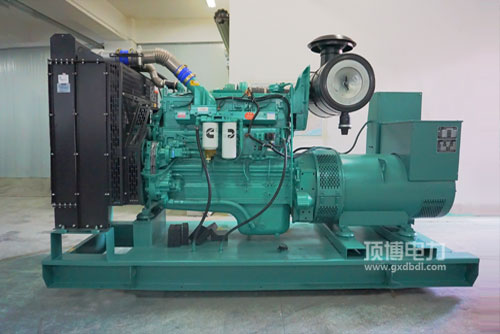

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用起倾向柴油划算性好: 专业的柴油掌控模式，独特的的STC、ESTC 等级划分掌控模式，特俗设汁的缸筒顶部丙烷发动机焚烧室，高电压引射柴油，完全吸雾，丙烷焚烧完全。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用打火机瞬态性能方面良好: 很好的打火机综合开发，做好康明斯与众不同的EFC设计，把控计算精更高，死机时间段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用热车机升效率高: 整体风格制定紧身.形态分布有效，加载能保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷手机型号 QSNT. QSK19. QSK38. QSK50满足了中国国非主干道第三点周期及亚洲Tier2. Tier 3排放物政策法规特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件可获得性好， 发起机使用及维护维护方便，成本价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率范畴 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观设计宽度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质 Dry Weight   940kg

224-310KW康明斯发电机组用热车机的结构特征：质量小， 压缩成比较高， 集水管空气质量煮沸，有利于通电，移动式汽车导航24v电源的都喜欢选用。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机规格型号	经常使用公率(kW)Prime Power	备用电源最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
